The Biomechanics of Intradermal Injection and Glide Force Optimization

1. The Mechanical Challenge of the Dermal Barrier

Intradermal (ID) injection is a critical delivery method, targeting the immunologically rich dermal layer for vaccines, antigens, and aesthetic “skin booster” treatments. Despite its clinical benefits, the ID layer presents a strong mechanical barrier compared to other parenteral routes such as subcutaneous (SC) or intramuscular (IM). The skin’s unique histology requires clinicians to overcome significant viscoelastic resistance to successfully deposit fluid within the narrow 1–2 mm target zone of the papillary or reticular dermis.

The Dermis as a Mechanical Barrier

The biological resistance faced during ID delivery results directly from the following tissue properties:

• Dense Collagen Matrix: Unlike the loose fatty tissue of the subcutaneous layer, the dermis is composed of a highly structured, interwoven matrix of collagen and elastin fibers that actively resists expansion.
• Non-Compliant Histology: Dermal tissue possesses exceptionally low compliance, meaning it does not easily yield to fluid volume. This creates substantial back-pressure that acts as a physical “brake” on the injection flow.
• Low Permeability: The structural density restricts the fluid dispersion path, forcing the operator to exert high hydrostatic pressure to expand the interstitial space and create a “wheal” or fluid depot.

To ensure accurate delivery, the clinician must apply physical forces that specifically counteract this biological resistance.

2. Deconstructing Injection Physics: The Cilurzo Framework

In medical device consulting, “injectability” describes how easily a formulation can be expelled through a delivery system into the target tissue. To improve device performance and clinician ergonomics, we use the Cilurzo Framework to break down the total force into sequential Newtonian components.

Primary Force Components

Analyzing the injection phase enables precise modification of the syringe-needle interface.

• Plunger-Stopper Break-Loose Force (PBF) / Breakthrough Glide Force:
  • Definition: The initial static friction that must be overcome between the syringe’s plunger-stopper and the inner barrel wall to initiate movement.
  • Impact: If PBF exceeds 15 N, the resulting “jerk” during breakthrough makes depth control difficult, leading to high variability in deposition depth.
• Maximum Force (Fmax):
  • Definition: The peak resistance encountered during the injection, heavily influenced by tissue back-pressure and the fluid’s viscoelastic properties.
  • Impact: Fmax determines the risk of tissue trauma. Forces exceeding 40 N typically indicate a mismatch between the formulation’s viscosity and the needle gauge, increasing the risk of local necrosis from pressure trauma.
• Dynamic Glide Force (DGF):
  • Definition: The sustained maintenance force required to maintain the plunger’s motion and expel fluid at a constant rate.
  • Impact: This is the primary driver of operator fatigue. High DGF values lead to hand tremors and a loss of fine motor control, compromising the precision required for dermal procedures.

Operator Comfort Bands for Intradermal Injection

The following table categorizes the impact of Newtonian force on the clinician’s ability to perform a controlled ID injection:

Force Band (N)	Interpretation
< 10 N	Very comfortable; uncommon in standard intradermal delivery.
10–20 N	Comfortable; typical of highly dilute formulations.
20–30 N	Moderately difficult; common for standard intradermal delivery.
30–40 N	Difficult; significant operator fatigue and tremor risk.
> 40 N	Very difficult; warrants immediate hardware/formulation re-evaluation.

Typical ID injections often reside in the “Difficult” band (30–40 N), necessitating a shift toward optimized hardware to ensure clinical safety.

3. Quantitative Analysis: Intradermal vs. Subcutaneous Resistance

The “Intradermal Paradox” illustrates a situation where the site provides significant immunological and aesthetic benefits but also exhibits the highest mechanical resistance among common parenteral routes. Data from Porcine Model Biomechanics—a dependable human tissue equivalent—measures the considerable effort needed for dermal penetration.

Average Plunger Force Requirements (Porcine Model)

• Intradermal (ID): 34.2 N
• Subcutaneous (SC): 20.7 N

Empirical data shows a 65% increase in the force needed for ID injections compared to SC methods. This force difference is the main cause of clinical errors, especially injection variability and the risk of “overshoot.” In an overshoot situation, the high back-pressure causes the operator to lose control, leading to “subcutaneous failure” where the needle crosses the dermal-subcutaneous boundary and deposits the injectate into the fat layer. These high forces call for a complete re-evaluation of delivery hardware design.

4. Syringe Geometry: The Exponential Force Lever

The principle of “Hydraulic Advantage” is the most powerful tool in reducing injection resistance. Barrel diameter is the primary factor predicting the force an operator must exert on the plunger.

The mathematical relationship is governed by F = P·A, where force (F) is the product of pressure (P) and the surface area of the plunger (A). Since the area is proportional to the square of the diameter (A=π(d/2)^2), the force needed to produce a specific injection pressure increases exponentially rather than linearly as the syringe size expands.

Syringe Sizing Directives

• Recommended: 1-mL syringes (6.3mm ID) are optimal, offering the necessary mechanical advantage. 3-mL syringes (10.0mm ID) are acceptable but require more effort.
• Contraindicated: Syringes of 5 mL or greater are unsuitable for manual ID delivery as the Newtons required typically exceed the threshold for fine motor control.

Mechanical Advantage Comparison

Syringe Size	Inner Diameter (ID)	Effort/Work Factor
1-mL Syringe	6.3 mm	1x Work (Baseline Advantage)
3-mL Syringe	10.0 mm	3x More Effort to overcome the same back-pressure

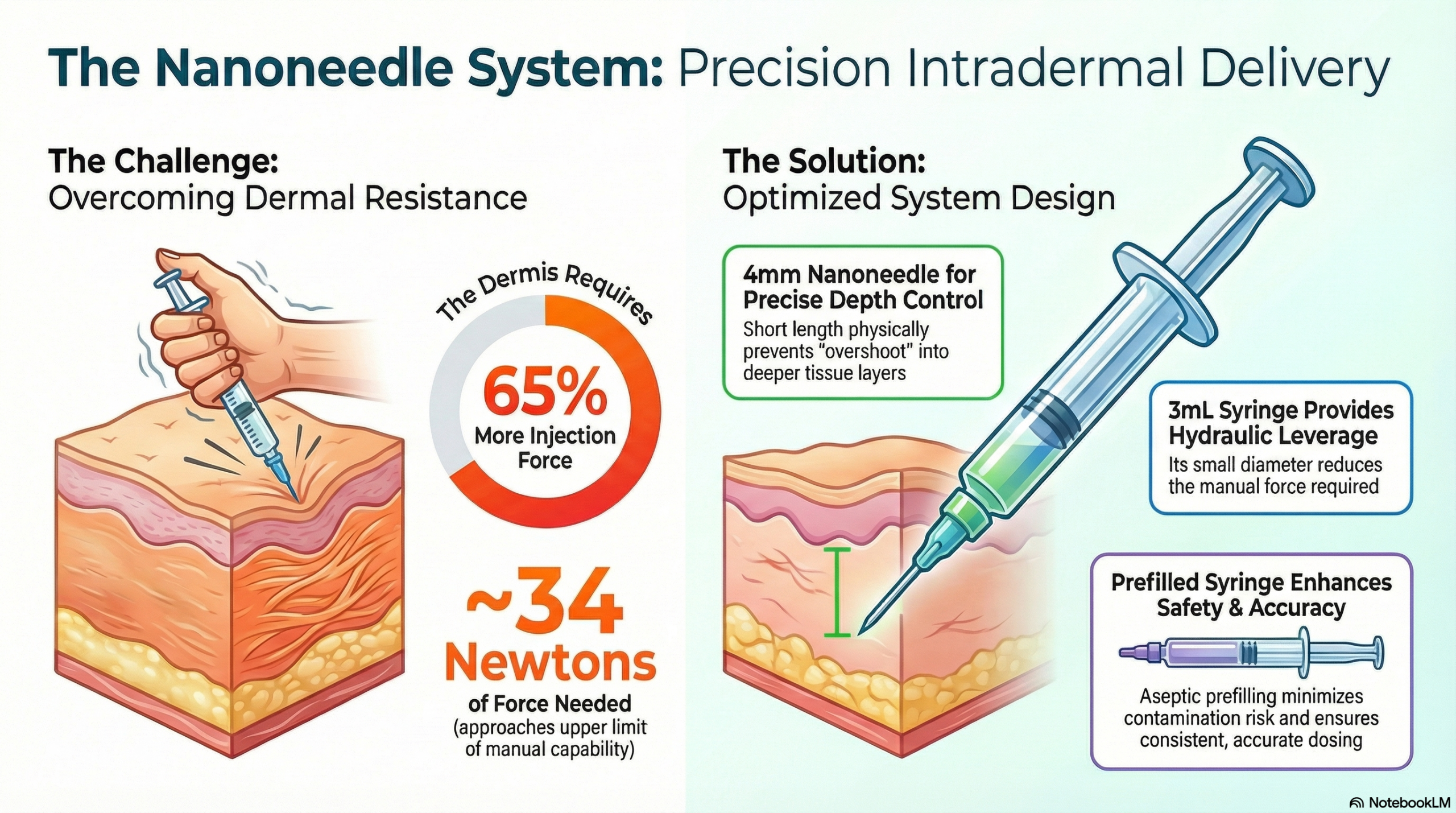

5. Advanced Needle Engineering: The Nanoneedle Solution

Needle geometry and surface engineering are key factors in fluid dynamics and friction control. To ensure the bevel is correctly placed within the 1–2 mm dermal depth, clinicians should use a 15° entry angle.

The Thin-Wall Paradox

The “Nanoneedle” uses thin-wall technology to address the trade-off between patient comfort and fluid resistance. By reducing the thickness of the stainless-steel cannula, a 30G needle can have a wider internal lumen (effectively a 27G internal bore). According to Poiseuille’s Law, flow resistance is inversely proportional to the radius to the fourth power (1/r^4). This means a small increase in the internal bore causes an exponential decrease in the force needed for dense dermal entry.

Impact of Needle Length and Drag

Resistance to flow is also influenced by the Bernoulli Principle, where resistance is directly related to the length of the tube. A 4 mm needle reduces “frictional drag” along the inner cannula wall compared to a standard 13 mm needle. In addition to reducing force, the 4 mm length acts as a physical safety stop, preventing subcutaneous overshoot when used with the recommended 15° insertion angle.

Surface Engineering (Tribology)

Beyond geometry, surface engineering can modulate the needle-tissue interface. Advanced coatings such as Thin Film Metallic Glass (TFMG) utilize an amorphous atomic structure with a low Coefficient of Friction (0.05) and low Surface Free Energy (23.0 mN/m). TFMG coatings have been shown to reduce insertion force by approximately 66% and retraction force by approximately 72% compared to bare stainless steel, greatly enhancing the “glide” through non-compliant tissue.

6. Synthesis: Achieving the Six-Fold Force Reduction

The greatest reduction in glide force results from the synergy of optimized parameters. Using a small-diameter syringe combined with advanced Nanoneedle geometry can cut mechanical effort by 82%.

Synthesis Table: Effort Reduction

Setup Type	Configuration	Resulting Force
Standard Setup	3-mL Syringe + 13-mm Needle	32.4 N (Near Failure Threshold)
Optimized Setup	1-mL Syringe + 4-mm Nanoneedle	5.7 N (82% Reduction in Effort)

Engineering Best Practices

1. Geometry: Utilize 1-mL syringes to exploit maximal hydraulic advantage.
2. Lumen: Specify 30-33G “Thin-Wall” needles (e.g., 30G with a 27G internal bore) to decrease flow resistance.
3. Length & Angle: Use 4 mm needles at a 15° angle of entry to minimize drag and prevent subcutaneous failure.
4. Surface Engineering: Employ TFMG or similar low-friction coatings to reduce insertion/retraction resistance.
5. Formulation: Dilute substances to a 1:1 ratio with saline to reduce viscoelasticity and minimize pressure-induced trauma risk (Fmax).

Switching from a qualitative to a quantitative, engineering-focused approach enables precise control of intradermal delivery. Using these biomechanical principles, clinicians can enhance safety, gain better control, and achieve consistent patient outcomes.

7. References

1. Cilurzo F, Selmin F, Minghetti P, et al. Injectability evaluation: an open issue. AAPS PharmSciTech. 2011;12(2):604-609.
2. Oh SM, Lee Y, Lee JH, Oh M. Investigating the mechanisms of intradermal injection for easier ‘skin booster’ treatment. Plast Reconstr Surg Glob Open. 2024;12(4):e5723.
3. Verwulgen S, Beyers K, Van Mulder T, et al. Assessment of forces in intradermal injection devices. Pharm Res. 2018;35(7):120.
4. Shrestha P, Stoeber B. Fluid absorption by skin tissue during intradermal injections through hollow microneedles. Sci Rep. 2018;8(1):13749.
5. Morsch M. The Case for Prefilled Syringes. Outpatient Surgery Magazine. 2025;Oct:22-24.
